"""Example: Visualize cross plane
Demonstrate visualizing a plane cut vertically through the flow field across the wind direction.
"""
import matplotlib.pyplot as plt
from floris import FlorisModel
from floris.flow_visualization import visualize_cut_plane
fmodel = FlorisModel("../inputs/gch.yaml")
# Set a 1 turbine layout
fmodel.set(
layout_x=[0],
layout_y=[0],
wind_directions=[270],
wind_speeds=[8],
turbulence_intensities=[0.06],
)
# Collect the cross plane downstream of the turbine
cross_plane = fmodel.calculate_cross_plane(
y_resolution=100,
z_resolution=100,
downstream_dist=500.0,
)
# Plot the flow field
fig, ax = plt.subplots(figsize=(4, 6))
visualize_cut_plane(

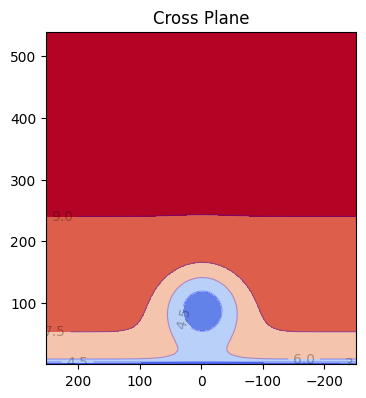

cross_plane, ax=ax, min_speed=3, max_speed=9, label_contours=True, title="Cross Plane"
)
plt.show()
import warnings
warnings.filterwarnings('ignore')
