"""Example: Visualize y cut plane
Demonstrate visualizing a plane cut vertically through the flow field along the wind direction.
"""
import matplotlib.pyplot as plt
from floris import FlorisModel
from floris.flow_visualization import visualize_cut_plane
fmodel = FlorisModel("../inputs/gch.yaml")
# Set a 3 turbine layout with wind direction along the row
fmodel.set(
layout_x=[0, 500, 1000],
layout_y=[0, 0, 0],
wind_directions=[270],
wind_speeds=[8],
turbulence_intensities=[0.06],
)
# Collect the yplane
y_plane = fmodel.calculate_y_plane(x_resolution=200, z_resolution=100, crossstream_dist=0.0)

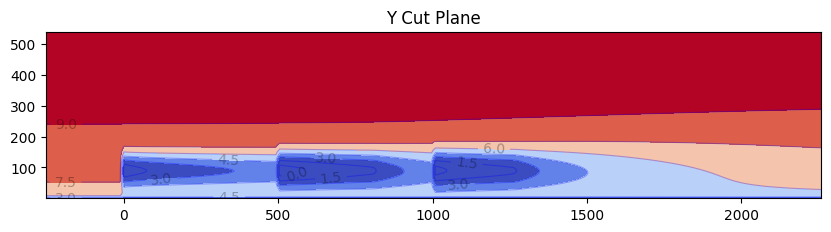

# Plot the flow field
fig, ax = plt.subplots(figsize=(10, 4))
visualize_cut_plane(
y_plane, ax=ax, min_speed=3, max_speed=9, label_contours=True, title="Y Cut Plane"
)
plt.show()
import warnings
warnings.filterwarnings('ignore')
