Tools - Module Standoff for IEC TS 63126

Tools - Module Standoff for IEC TS 63126#

Calculation of module standoff distance according to IEC TS 63126#

Requirements:

  • Local weather data file or site longitude and latittude

Objectives:

  1. Import weather data.

  2. Calculate installation standoff - Level 1 and Level 2.

  3. Calculate \(X_{eff}\) from provided module temperature data.

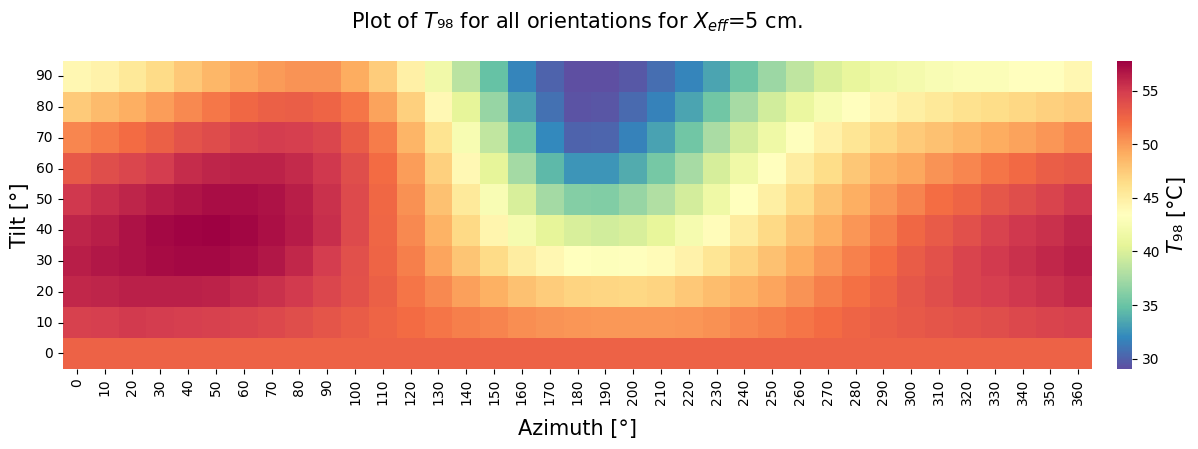

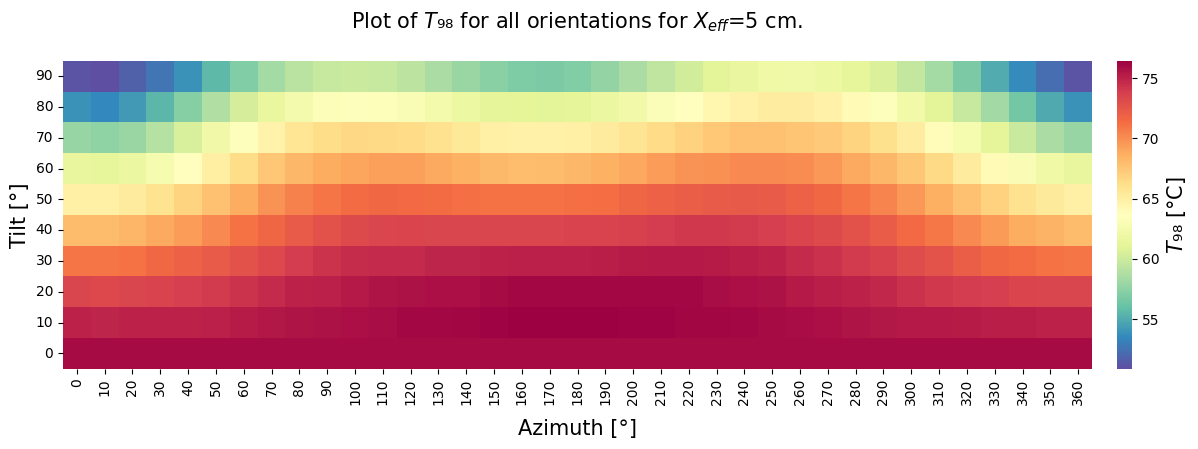

  4. Calculate \(T_{98}\) for a given azimuth, tilt, and \(X_{eff}\).

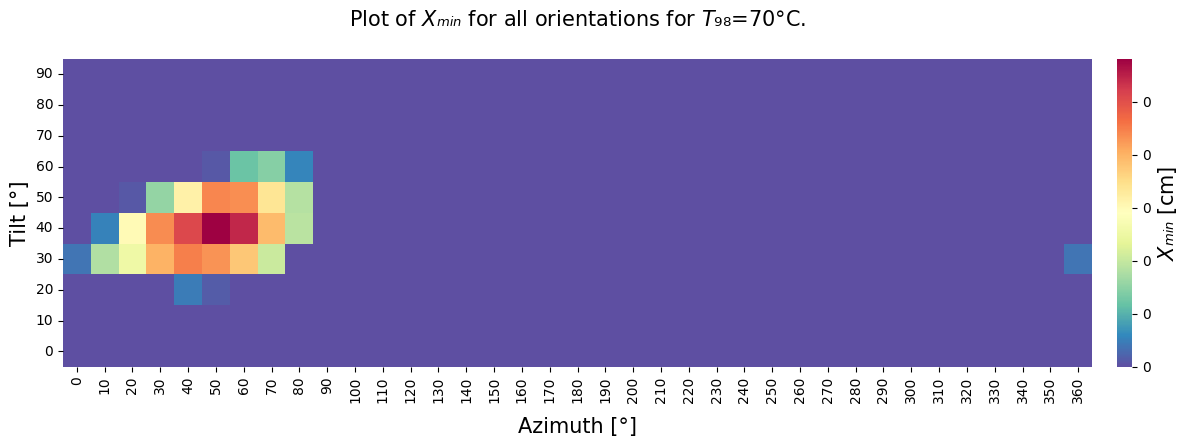

  5. Plot \(X_{min}\) for all azimuth and tilt for a given \(T_{98}\).

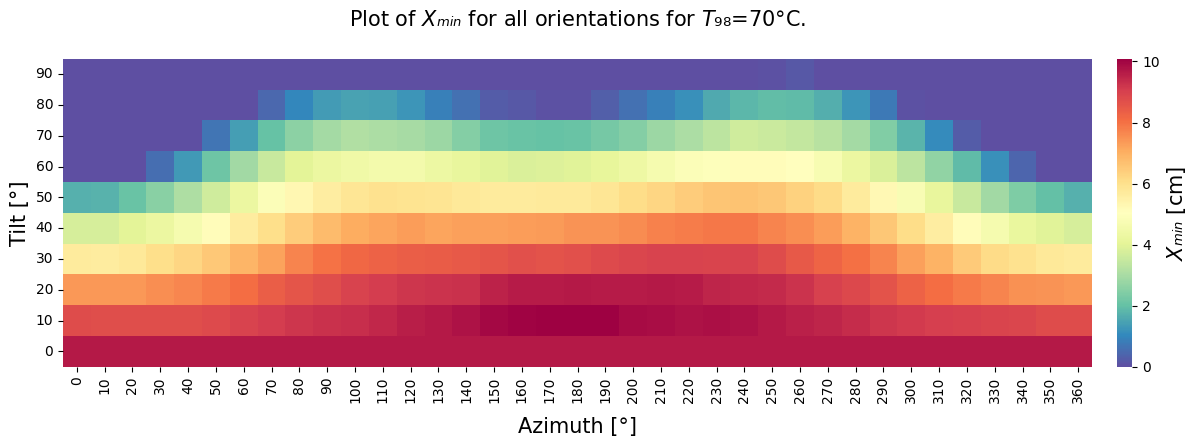

  6. Plot \(X_{min}\) for Level 1, Level 2, or a \(T_{98}\) for a given region.

Background:

This notebook calculates the a minimum effective standoff distance (\(X_{eff}\)) necessary for roof-mounted PV modules to ensure that the \(98^{th}\) percentile operating temperature, \(T_{98}\), remains under 70°C for compliance to IEC 61730 and IEC 61215. For higher \(T_{98}\) values above 70°C or 80°C testing must be done to the specifications for Level 1 and Level 2 of IEC TS 63126. This method is outlined in the appendix of IEC TS 63126 and is based on the model from *[King 2004] and data from **[Fuentes, 1987] to model the approximate exponential decay in temperature, \(T(X)\), with increasing standoff distance, \(X\), as,

\[ X = -X_0 \ln\left(1-\frac{T_0-T}{\Delta T}\right), Equation 1 \]

where \(T_0\) is the temperature for \(X=0\) (insulated-back) and \(\Delta T\) is the temperature difference between an insulated-back (\(X=0\)) and open-rack mounting configuration (\(X=\infty)\).

We used pvlib and data from the National Solar Radiation Database (NSRDB) to calculate the module temperatures for the insulated-back and open-rack mounting configurations and apply our model to obtain the minimum standoff distance for roof-mounted PV systems to achieve a temperature lower than a specified \(T_{98}\). The following figure showcases this calulation for the entire world for an \(X_{eff}\) that results in \(T_{98}\)=70°C. Values of \(X_{eff}\) higher than this will require Level 1 or Level 2 certification.

\(*\) D. L. King, W. E. Boyson, and J. A. Kratochvil, “Photovoltaic array performance model,” SAND2004-3535, Sandia National Laboratories, Albuquerque, NM, 2004. ‘
\(**\) M. K. Fuentes, “A simplified thermal model for Flat-Plate photovoltaic arrays,” United States, 1987-05-01 1987. https://www.osti.gov/biblio/6802914

alt text
