LETID - Outdoor Environments

LETID - Outdoor Environments#

This is an example on how to model LETID progression in outdoor environments

We can use the equations in this library to model LETID progression in a simulated outdoor environment, given that we have weather and system data. This example makes use of tools from the fabulous pvlib library to calculate system irradiance and temperature, which we use to calculate progression in LETID states.

This will illustrate the potential of “Temporary Recovery”, i.e., the backwards transition of the LETID defect B->A that can take place with carrier injection at lower temperatures.

Requirements:

  • pvlib, pandas, numpy, matplotlib

Objectives:

  1. Use pvlib and provided weather files to set up a temperature and injection timeseries

  2. Define necessary solar cell device parameters

  3. Define necessary degradation parameters: degraded lifetime and defect states

  4. Run through timeseries, calculating defect states

  5. Calculate device degradation and plot

# if running on google colab, uncomment the next line and execute this cell to install the dependencies and prevent "ModuleNotFoundError" in later cells:
# !pip install pvdeg==0.3.3

from pvdeg import letid, collection, utilities, DATA_DIR

import pvlib
import os
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
import pvdeg

# This information helps with debugging and getting support :)
import sys, platform
print("Working on a ", platform.system(), platform.release())
print("Python version ", sys.version)
print("Pandas version ", pd.__version__)
print("pvlib version ", pvlib.__version__)
print("pvdeg version ", pvdeg.__version__)

Working on a  Linux 6.5.0-1025-azure
Python version  3.11.9 (main, Jul 15 2024, 21:50:21) [GCC 11.4.0]
Pandas version  2.2.2
pvlib version  0.10.3
pvdeg version  0.1.dev1+g4f38099

First, we’ll use pvlib to create and run a model system, and use the irradiance, temperature, and operating point of that model to set up our LETID model For this example, we’ll model a fixed latitude tilt system at NREL, in Golden, CO, USA, using NSRDB hourly PSM weather data, SAPM temperature models, and module and inverter models from the CEC database.

# load weather and location data, use pvlib read_psm3 function with map_variables = True

sam_file = 'psm3.csv'
weather, meta = pvdeg.weather.read(os.path.join(DATA_DIR, sam_file), file_type='PSM3', map_variables = True)

weather
Year Month Day Hour Minute dni dhi ghi temp_air dew_point wind_speed relative_humidity poa_global temp_cell temp_module
1999-01-01 00:30:00-07:00 1999 1 1 0 30 0.0 0.0 0.0 0.0 -5.0 1.8 79.39 0.0 0.0 0.0
1999-01-01 01:30:00-07:00 1999 1 1 1 30 0.0 0.0 0.0 0.0 -4.0 1.7 80.84 0.0 0.0 0.0
1999-01-01 02:30:00-07:00 1999 1 1 2 30 0.0 0.0 0.0 0.0 -4.0 1.5 82.98 0.0 0.0 0.0
1999-01-01 03:30:00-07:00 1999 1 1 3 30 0.0 0.0 0.0 0.0 -4.0 1.3 85.01 0.0 0.0 0.0
1999-01-01 04:30:00-07:00 1999 1 1 4 30 0.0 0.0 0.0 0.0 -4.0 1.3 85.81 0.0 0.0 0.0
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
1999-12-31 19:30:00-07:00 1999 12 31 19 30 0.0 0.0 0.0 0.0 -3.0 0.9 83.63 0.0 0.0 0.0
1999-12-31 20:30:00-07:00 1999 12 31 20 30 0.0 0.0 0.0 0.0 -3.0 1.2 86.82 0.0 0.0 0.0
1999-12-31 21:30:00-07:00 1999 12 31 21 30 0.0 0.0 0.0 0.0 -4.0 1.6 83.78 0.0 0.0 0.0
1999-12-31 22:30:00-07:00 1999 12 31 22 30 0.0 0.0 0.0 0.0 -4.0 1.7 81.22 0.0 0.0 0.0
1999-12-31 23:30:00-07:00 1999 12 31 23 30 0.0 0.0 0.0 0.0 -5.0 1.8 79.43 0.0 0.0 0.0

8760 rows × 15 columns

#if our weather file doesn't have precipitable water, calculate it with pvlib
if not 'precipitable_water' in weather.columns:
    weather['precipitable_water'] = pvlib.atmosphere.gueymard94_pw(weather['temp_air'], weather['relative_humidity'])

# rename some columns for pvlib if they haven't been already
weather.rename(columns = {'GHI':'ghi', 'DNI':'dni', 'DHI':'dhi', 'Temperature':'temp_air', 'Wind Speed':'wind_speed', 'Relative Humidity':'relative_humidity', 'Precipitable Water':'precipitable_water'}, inplace = True)
weather = weather[['ghi', 'dni', 'dhi', 'temp_air', 'wind_speed', 'relative_humidity', 'precipitable_water']]

weather
ghi dni dhi temp_air wind_speed relative_humidity precipitable_water
1999-01-01 00:30:00-07:00 0.0 0.0 0.0 0.0 1.8 79.39 0.891869
1999-01-01 01:30:00-07:00 0.0 0.0 0.0 0.0 1.7 80.84 0.908158
1999-01-01 02:30:00-07:00 0.0 0.0 0.0 0.0 1.5 82.98 0.932199
1999-01-01 03:30:00-07:00 0.0 0.0 0.0 0.0 1.3 85.01 0.955004
1999-01-01 04:30:00-07:00 0.0 0.0 0.0 0.0 1.3 85.81 0.963991
... ... ... ... ... ... ... ...
1999-12-31 19:30:00-07:00 0.0 0.0 0.0 0.0 0.9 83.63 0.939501
1999-12-31 20:30:00-07:00 0.0 0.0 0.0 0.0 1.2 86.82 0.975338
1999-12-31 21:30:00-07:00 0.0 0.0 0.0 0.0 1.6 83.78 0.941186
1999-12-31 22:30:00-07:00 0.0 0.0 0.0 0.0 1.7 81.22 0.912427
1999-12-31 23:30:00-07:00 0.0 0.0 0.0 0.0 1.8 79.43 0.892318

8760 rows × 7 columns

# import pvlib stuff and pick a module and inverter. Choice of these things will slightly affect the pvlib results which we later use to calculate injection.
# we'll use the SAPM temperature model open-rack glass/polymer coeffecients.

from pvlib.temperature import TEMPERATURE_MODEL_PARAMETERS
from pvlib.location import Location
from pvlib.pvsystem import PVSystem
from pvlib.modelchain import ModelChain

cec_modules = pvlib.pvsystem.retrieve_sam('CECMod')
cec_inverters = pvlib.pvsystem.retrieve_sam('cecinverter')

cec_module = cec_modules['Jinko_Solar_Co___Ltd_JKM260P_60']
cec_inverter = cec_inverters['ABB__ULTRA_750_TL_OUTD_1_US_690_x_y_z__690V_']

temperature_model_parameters = TEMPERATURE_MODEL_PARAMETERS['sapm']['open_rack_glass_polymer']

# set up system in pvlib
lat = meta['latitude']
lon = meta['longitude']
tz = meta['tz']
elevation = meta['altitude']
surface_tilt = lat # fixed, latitude tilt
surface_azimuth = 180 # south-facing

location = Location(lat, lon, tz, elevation, 'Golden, CO, USA')

system = PVSystem(surface_tilt = surface_tilt, surface_azimuth = surface_azimuth,
                  module_parameters = cec_module,
                  inverter_parameters = cec_inverter,
                  temperature_model_parameters = temperature_model_parameters,
                  )

# create and run pvlib modelchain
mc = ModelChain(system, location, aoi_model = "physical")
mc.run_model(weather)

ModelChain:
  name: None
  clearsky_model: ineichen
  transposition_model: haydavies
  solar_position_method: nrel_numpy
  airmass_model: kastenyoung1989
  dc_model: cec
  ac_model: sandia_inverter
  aoi_model: physical_aoi_loss
  spectral_model: first_solar_spectral_loss
  temperature_model: sapm_temp
  losses_model: no_extra_losses

Set up timeseries#

In this example, injection is a function of both the operating point of the module (which we will assume is maximum power point) and irradiance. Maximum power point injection is equivalent to \((I_{sc}-I_{mp})/I_{sc}\times Ee\), where \(Ee\) is effective irradiance, the irradiance absorbed by the module’s cells. We normalize it to 1-sun irradiance, 1000 \(W/m^2\).

We will use the irradiance, DC operating point, and cell temperature from the pvlib modelchain results.

ee = mc.results.effective_irradiance
#injection = (mc.results.dc['i_sc']-mc.results.dc['i_mp'])/(mc.results.dc['i_sc'])*(ee/1000)
injection = letid.calc_injection_outdoors(mc.results)
temperature = mc.results.cell_temperature

timesteps = pd.DataFrame({'Temperature':temperature, 'Injection':injection}) # create a DataFrame with cell temperature and injection
timesteps.reset_index(inplace = True) # reset the index so datetime is a column. I prefer integer indexing.
timesteps.rename(columns = {'index':'Datetime'}, inplace = True)

# filter out times when injection is NaN, these won't progress LETID, and it'll make the calculations below run faster
timesteps = timesteps[timesteps['Injection'].notnull()]
timesteps.reset_index(inplace = True, drop = True)

timesteps
Datetime Temperature Injection
0 1999-01-01 08:30:00-07:00 3.348774 0.006239
1 1999-01-01 09:30:00-07:00 12.378439 0.031607
2 1999-01-01 10:30:00-07:00 16.595081 0.044220
3 1999-01-01 11:30:00-07:00 17.457240 0.043201
4 1999-01-01 12:30:00-07:00 6.392783 0.007124
... ... ... ...
4296 1999-12-31 12:30:00-07:00 9.515577 0.001151
4297 1999-12-31 13:30:00-07:00 28.119796 0.044499
4298 1999-12-31 14:30:00-07:00 23.314672 0.035130
4299 1999-12-31 15:30:00-07:00 17.890528 0.027891
4300 1999-12-31 16:30:00-07:00 4.552365 0.001188

4301 rows × 3 columns

Device parameters#

To define a device, we need to define several important quantities about the device: wafer thickness (in \(\mu m\)), rear surface recombination velocity (in cm/s), and cell area (in cm2).

wafer_thickness = 180 # um
s_rear = 46 # cm/s
cell_area = 243 # cm^2

Other device parameters Other required device parameters: base diffusivity (in cm2/s), and optical generation profile, which allow us to estimate current collection in the device.

generation_df = pd.read_excel(os.path.join(DATA_DIR, 'PVL_GenProfile.xlsx'), header = 0) # this is an optical generation profile generated by PVLighthouse's OPAL2 default model for 1-sun, normal incident AM1.5 sunlight on a 180-um thick SiNx-coated, pyramid-textured wafer.
generation = generation_df['Generation (cm-3s-1)']
depth = generation_df['Depth (um)']

d_base = 27 # cm^2/s electron diffusivity. See https://www2.pvlighthouse.com.au/calculators/mobility%20calculator/mobility%20calculator.aspx for details

Degradation parameters#

To model the device’s degradation, we need to define several more important quantities about the degradation the device will experience. These include undegraded and degraded lifetime (in \(\mu s\)).

tau_0 = 115 # us, carrier lifetime in non-degraded states, e.g. LETID/LID states A or C
tau_deg = 55 # us, carrier lifetime in fully-degraded state, e.g. LETID/LID state B

Remaining degradation parameters:

The rest of the quantities to define are: the initial percentage of defects in each state (A, B, and C), and the dictionary of mechanism parameters.

In this example, we’ll assume the device starts in the fully-undegraded state (100% state A), and we’ll use the kinetic parameters for LETID degradation from Repins.

# starting defect state percentages
nA_0 = 100
nB_0 = 0
nC_0 = 0

mechanism_params = utilities.get_kinetics('repins')

timesteps[['NA', 'NB', 'NC', 'tau']] = np.nan # create columns for defect state percentages and lifetime, fill with NaNs for now, to fill iteratively below

timesteps.loc[0, ['NA', 'NB', 'NC']] = nA_0, nB_0, nC_0 # assign first timestep defect state percentages
timesteps.loc[0, 'tau'] = letid.tau_now(tau_0, tau_deg, nB_0) # calculate tau for the first timestep

Run through timesteps#

Since each timestep depends on the preceding timestep, we need to calculate in a loop. This will take a few minutes depending on the length of the timeseries.

for index, timestep in timesteps.iterrows():

    # first row tau has already been assigned
    if index == 0:
        #calc device parameters for first row
        tau = tau_0
        jsc = collection.calculate_jsc_from_tau_cp(tau, wafer_thickness, d_base, s_rear, generation, depth)
        voc = letid.calc_voc_from_tau(tau, wafer_thickness, s_rear, jsc, temperature = 25)
        timesteps.at[index, 'Jsc'] = jsc
        timesteps.at[index, 'Voc'] = voc

    # loop through rows, new tau calculated based on previous NB. Reaction proceeds based on new tau.
    else:
        n_A = timesteps.at[index-1, 'NA']
        n_B = timesteps.at[index-1, 'NB']
        n_C = timesteps.at[index-1, 'NC']

        tau = letid.tau_now(tau_0, tau_deg, n_B)
        jsc = collection.calculate_jsc_from_tau_cp(tau, wafer_thickness, d_base, s_rear, generation, depth)

        temperature = timesteps.at[index, 'Temperature']
        injection = timesteps.at[index, 'Injection']

        # calculate defect reaction kinetics: reaction constant and carrier concentration factor.
        k_AB = letid.k_ij(mechanism_params['v_ab'], mechanism_params['ea_ab'], temperature)
        k_BA = letid.k_ij(mechanism_params['v_ba'], mechanism_params['ea_ba'], temperature)
        k_BC = letid.k_ij(mechanism_params['v_bc'], mechanism_params['ea_bc'], temperature)
        k_CB = letid.k_ij(mechanism_params['v_cb'], mechanism_params['ea_cb'], temperature)

        x_ab = letid.carrier_factor(tau, 'ab', temperature, injection, jsc, wafer_thickness, s_rear, mechanism_params)
        x_ba = letid.carrier_factor(tau, 'ba', temperature, injection, jsc, wafer_thickness, s_rear, mechanism_params)
        x_bc = letid.carrier_factor(tau, 'bc', temperature, injection, jsc, wafer_thickness, s_rear, mechanism_params)

        # calculate the instantaneous change in NA, NB, and NC
        dN_Adt = (k_BA * n_B * x_ba) - (k_AB * n_A * x_ab)
        dN_Bdt = (k_AB * n_A * x_ab) + (k_CB * n_C) - ((k_BA * x_ba + k_BC * x_bc) * n_B)
        dN_Cdt = (k_BC * n_B * x_bc) - (k_CB * n_C)

        t_step = (timesteps.at[index, 'Datetime'] - timesteps.at[index-1,'Datetime']).total_seconds()

        # assign new defect state percentages
        timesteps.at[index, 'NA'] = n_A + dN_Adt*t_step
        timesteps.at[index, 'NB'] = n_B + dN_Bdt*t_step
        timesteps.at[index, 'NC'] = n_C + dN_Cdt*t_step

        #calculate device parameters
        timesteps.at[index, 'tau'] = tau
        timesteps.at[index, 'Jsc'] = jsc
        timesteps.at[index, 'Voc'] = letid.calc_voc_from_tau(tau, wafer_thickness, s_rear, jsc, temperature = 25)

Finish calculating degraded device parameters.#

Now that we have calculated defect states, we can calculate all the quantities that depend on defect states.

timesteps['tau'] = letid.tau_now(tau_0, tau_deg, timesteps['NB'])

# calculate device Jsc for every timestep. Unfortunately this requires an integration so I think we have to run through a loop. Device Jsc allows calculation of device Voc.
for index, timestep in timesteps.iterrows():
    jsc_now = collection.calculate_jsc_from_tau_cp(timesteps.at[index, 'tau'], wafer_thickness, d_base, s_rear, generation, depth)
    timesteps.at[index, 'Jsc'] = jsc_now
    timesteps.at[index, 'Voc'] = letid.calc_voc_from_tau(timesteps.at[index, 'tau'], wafer_thickness, s_rear, jsc_now, temperature = 25)

timesteps = letid.calc_device_params(timesteps, cell_area = 243) # this function quickly calculates the rest of the device parameters: Isc, FF, max power, and normalized max power

timesteps
Datetime Temperature Injection NA NB NC tau Jsc Voc Isc FF Pmp Pmp_norm
0 1999-01-01 08:30:00-07:00 3.348774 0.006239 100.000000 0.000000 0.000000e+00 115.000000 41.590997 0.666327 10.106612 0.840987 5.663467 1.000000
1 1999-01-01 09:30:00-07:00 12.378439 0.031607 99.997547 0.002453 0.000000e+00 114.996922 41.590987 0.666327 10.106610 0.840987 5.663460 0.999999
2 1999-01-01 10:30:00-07:00 16.595081 0.044220 99.991953 0.008047 6.072523e-09 114.989905 41.590966 0.666326 10.106605 0.840986 5.663446 0.999996
3 1999-01-01 11:30:00-07:00 17.457240 0.043201 99.985929 0.014071 2.755257e-08 114.982350 41.590942 0.666324 10.106599 0.840986 5.663430 0.999994
4 1999-01-01 12:30:00-07:00 6.392783 0.007124 99.985664 0.014336 2.864303e-08 114.982018 41.590941 0.666324 10.106599 0.840986 5.663429 0.999993
... ... ... ... ... ... ... ... ... ... ... ... ... ...
4296 1999-12-31 12:30:00-07:00 9.515577 0.001151 42.029575 53.766632 4.203792e+00 72.484546 41.385898 0.656929 10.056773 0.839317 5.545020 0.979086
4297 1999-12-31 13:30:00-07:00 28.119796 0.044499 42.030231 53.765654 4.204115e+00 72.485034 41.385901 0.656929 10.056774 0.839318 5.545022 0.979086
4298 1999-12-31 14:30:00-07:00 23.314672 0.035130 42.036311 53.759433 4.204257e+00 72.488135 41.385924 0.656930 10.056780 0.839318 5.545034 0.979088
4299 1999-12-31 15:30:00-07:00 17.890528 0.027891 42.048873 53.746813 4.204313e+00 72.494425 41.385972 0.656932 10.056791 0.839318 5.545058 0.979093
4300 1999-12-31 16:30:00-07:00 4.552365 0.001188 42.049445 53.746242 4.204314e+00 72.494710 41.385974 0.656932 10.056792 0.839318 5.545059 0.979093

4301 rows × 13 columns

Note of course that all these calculated device parameters are modeled STC device parameters, not the instantaneous, weather-dependent values. This isn’t a robust performance model of a degraded module.

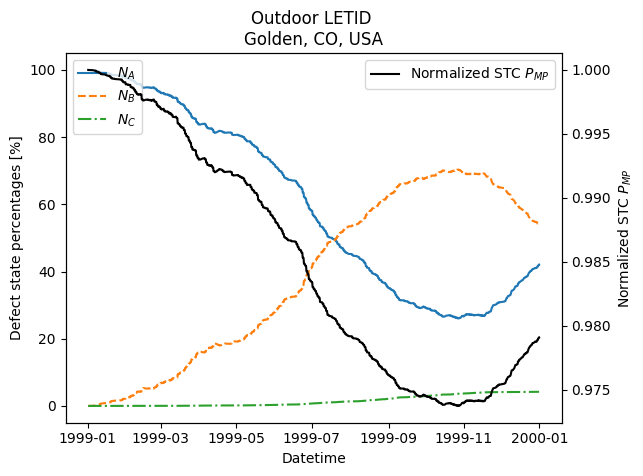

Plot the results#

from cycler import cycler
plt.style.use('default')

fig, ax = plt.subplots()

ax.set_prop_cycle(cycler('color', ['tab:blue', 'tab:orange', 'tab:green']) + cycler('linestyle', ['-', '--', '-.']))

ax.plot(timesteps['Datetime'], timesteps[['NA', 'NB', 'NC']].values)
ax.legend(labels = ['$N_A$', '$N_B$', '$N_C$'], loc = 'upper left')
ax.set_ylabel('Defect state percentages [%]')
ax.set_xlabel('Datetime')

ax2 = ax.twinx()
ax2.plot(timesteps['Datetime'], timesteps['Pmp_norm'], c = 'black', label = 'Normalized STC $P_{MP}$')
ax2.legend(loc = 'upper right')
ax2.set_ylabel('Normalized STC $P_{MP}$')

ax.set_title('Outdoor LETID \n'f'{location.name}')

plt.show()
../_images/4cf650ae3cd0ecf551504a5703fa17a7c5ed3791485c61223b69a06afbfe5197.png

The example data provided for Golden, CO, shows how \(N_A\) increases in cold weather, and power temporarily recovers, due to temporary recovery of LETID (B->A).

The function calc_letid_outdoors wraps all of the steps above into a single function:#

nA_0 = 100
nB_0 = 0
nC_0 = 0
mechanism_params = 'repins'

letid.calc_letid_outdoors(tau_0, tau_deg,wafer_thickness, s_rear, nA_0, nB_0, nC_0, weather, meta, mechanism_params, generation_df, module_parameters = cec_module)
Temperature Injection NA NB NC tau Jsc Voc Isc FF Pmp Pmp_norm
time
1999-01-01 00:30:00-07:00 0.0 NaN 100.000000 0.000000e+00 0.000000e+00 115.000000 41.590997 0.666327 10.106612 0.840987 5.663467 1.000000
1999-01-01 01:30:00-07:00 0.0 NaN 100.000000 1.702422e-15 0.000000e+00 115.000000 41.590997 0.666327 10.106612 0.840987 5.663467 1.000000
1999-01-01 02:30:00-07:00 0.0 NaN 100.000000 3.404843e-15 5.403329e-36 115.000000 41.590997 0.666327 10.106612 0.840987 5.663467 1.000000
1999-01-01 03:30:00-07:00 0.0 NaN 100.000000 5.107265e-15 1.620999e-35 115.000000 41.590997 0.666327 10.106612 0.840987 5.663467 1.000000
1999-01-01 04:30:00-07:00 0.0 NaN 100.000000 6.809686e-15 3.241997e-35 115.000000 41.590997 0.666327 10.106612 0.840987 5.663467 1.000000
... ... ... ... ... ... ... ... ... ... ... ... ...
1999-12-31 19:30:00-07:00 0.0 NaN 27.833654 6.778463e+01 4.381716e+00 66.112142 41.333851 0.654974 10.044126 0.838966 5.519257 0.974537
1999-12-31 20:30:00-07:00 0.0 NaN 27.833654 6.778463e+01 4.381716e+00 66.112142 41.333851 0.654974 10.044126 0.838966 5.519257 0.974537
1999-12-31 21:30:00-07:00 0.0 NaN 27.833654 6.778463e+01 4.381716e+00 66.112142 41.333851 0.654974 10.044126 0.838966 5.519257 0.974537
1999-12-31 22:30:00-07:00 0.0 NaN 27.833654 6.778463e+01 4.381716e+00 66.112142 41.333851 0.654974 10.044126 0.838966 5.519257 0.974537
1999-12-31 23:30:00-07:00 0.0 NaN 27.833654 6.778463e+01 4.381716e+00 66.112142 41.333851 0.654974 10.044126 0.838966 5.519257 0.974537

8760 rows × 12 columns

Contents
