OpenFOAM#

OpenFOAM Installation#

Building OpenFOAM with cray-mpich and gcc#

Instructions for installing OpenFOAM are available here.

In the instructions, you will be cloning the OpenFOAM folder which we will refer to as $OPENFOAM.

In order to build OpenFOAM with cray-mpich, two files need to be edited.

$OPENFOAM/etc/bashrc

In this file, the variable WM_MPLIB will be defined as MPICH. Search for the line where the variable is exported and replace it with
```
export WM_MPLIB=MPICH
```

$OPENFOAM/etc/config.sh/mpi

This file defines where mpich is defined on the system. You will search for the mpich definition block and replace it with

export MPI_ARCH_PATH=/opt/cray/pe/mpich/8.1.28/ofi/gnu/10.3
export LD_LIBRARY_PATH="${MPI_ARCH_PATH}/lib:${LD_LIBRARY_PATH}"
export PATH="${MPI_ARCH_PATH}/bin:${PATH}"
export FOAM_MPI=mpich-8.1.28
export MPI_HOME=/opt/cray/pe/mpich/8.1.28/ofi/gnu/10.3
#export FOAM_MPI=mpich2-1.1.1p1
#export MPI_HOME=$WM_THIRD_PARTY_DIR/$FOAM_MPI
#export MPI_ARCH_PATH=$WM_THIRD_PARTY_DIR/platforms/$WM_ARCH$WM_COMPILER/$FOAM_MPI


_foamAddPath    $MPI_ARCH_PATH/bin


# 64-bit on OpenSuSE 12.1 uses lib64 others use lib
_foamAddLib     $MPI_ARCH_PATH/lib$WM_COMPILER_LIB_ARCH
_foamAddLib     $MPI_ARCH_PATH/lib


_foamAddMan     $MPI_ARCH_PATH/share/man
;;

Before you install OpenFOAM, make sure to load Prgenv-gnu. This will load gcc and cray-mpich. Make sure the same module is loaded at runtime.

Running OpenFOAM cases using Modules#

There are several modules for builds of OpenFOAM. After logging in to a CPU node on Kestrel, please use the module avail command to view available versions.

CPU $ module avail openfoam
----------------------------- /nopt/nrel/apps/cpu_stack/modules/default/application -----------------------------
   openfoam/v2306-openmpi-gcc      openfoam/9-craympich (D)    openfoam/11-craympich
   openfoam/v2406-craympich-gcc    openfoam/9-ompi             openfoam/12-intelmpi

Sample job script: Kestrel

#!/bin/bash
#SBATCH --job-name=myOpenFOAMjob
#SBATCH --account=<your-account-name>
#SBATCH --output=foamOutputLog.out
#SBATCH --error=foamErrorLog.out
#SBATCH --mail-user=<yourEmailAddress>@nrel.gov
#SBATCH --nodes=2
#SBATCH --partition=hbw
#SBATCH --ntasks-per-node=104 # set number of MPI ranks per node
#SBATCH --time=04:00:00


module load openfoam/<version>

decomposePar

srun -n 200 --cpu-bind=v,rank_ldom rhoReactingBuoyantFoam -parallel >> log.h2

reconstructPar -time 0:5000  -fields '(H2 X_H2)'

Installing additional OpenFOAM packages#

Additional packages built on top of the OpenFOAM API can be installed after loading a compatible module. As an example, we show the process to install the OpenFuelCell2 package.

# Download or clone the required package
$ git clone https://github.com/openFuelCell2/openFuelCell2.git

$ cd openFuelCell2

# Request an interactive node for compiling in parallel
$ salloc --account=<your-account-name> --time=00:30:00 --nodes=1 --ntasks-per-core=1 --ntasks-per-node=104 --cpus-per-task=1 --partition=debug

# Load the module compatible with your package
$ module load openfoam/v2306-openmpi-gcc

# Compile the application with the official instructions from the developers, e.g.
$ cd src
$ ./Allwmake  -j -prefix=${PWD}

# Test
$ cd ../run/SOFC/
$ make mesh
$ export NPROCS=4
$ make decompose
$ make parallel
$ make run

Benchmarks#

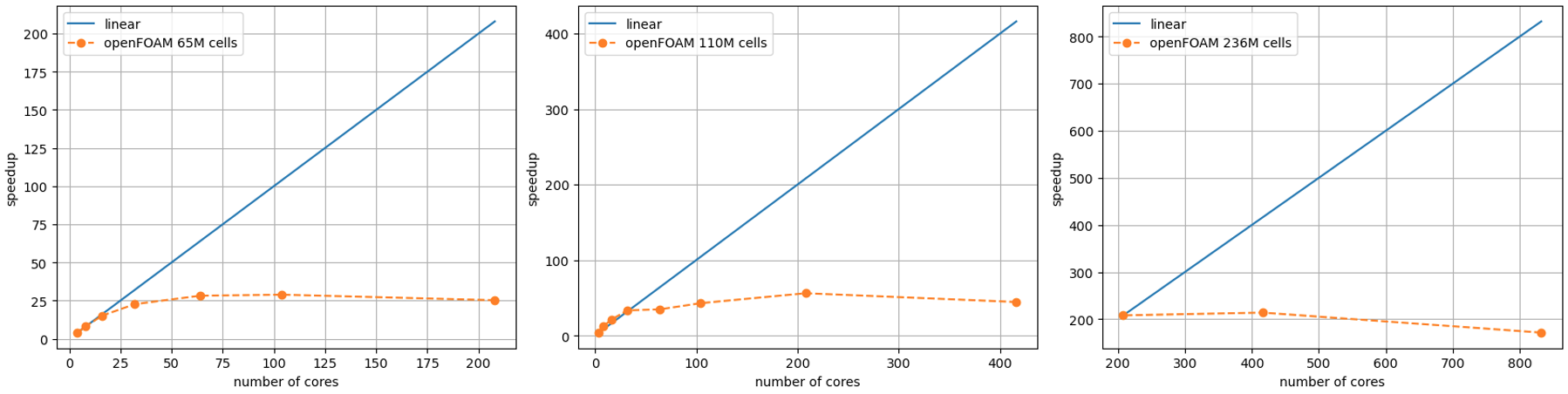

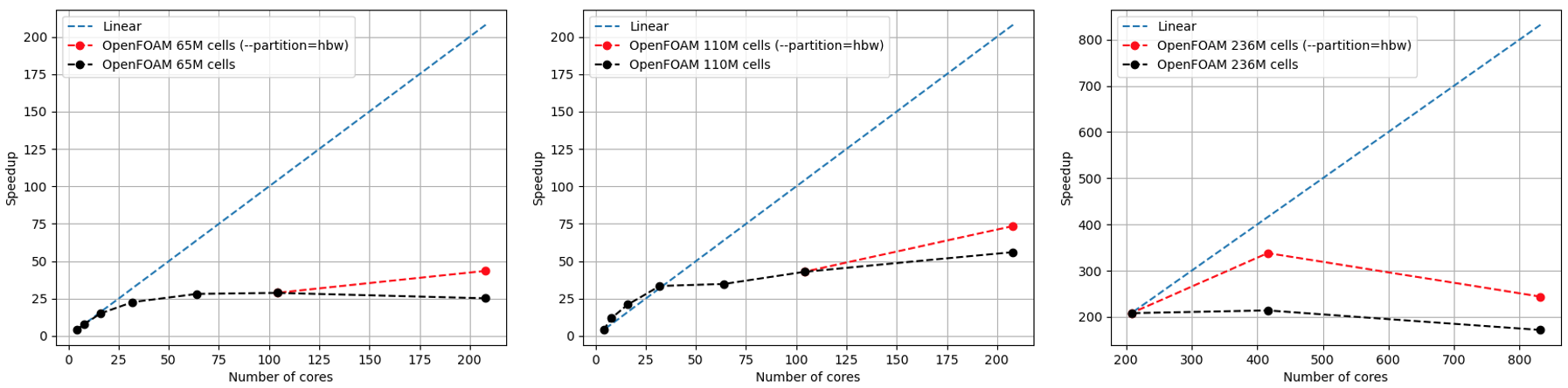

OpenFOAM v2412 compiled with cray-mpich has been used to perform strong scaling tests of the DrivAer automobile model on Kestrel. The results are shown below for three levels of mesh resolution. For this particular setup, the application has shown to scale poorly beyond 2 nodes. However, for jobs requiring more than 1 node, using high bandwith nodes with #SBATCH --partition=hbw in your job script might yield better performance. Since the behaviour is consistent with some user reports about their own setups, we encourage users to switch to newer versions and perform strong & weak scaling tests on their own before submitting a new large job.
